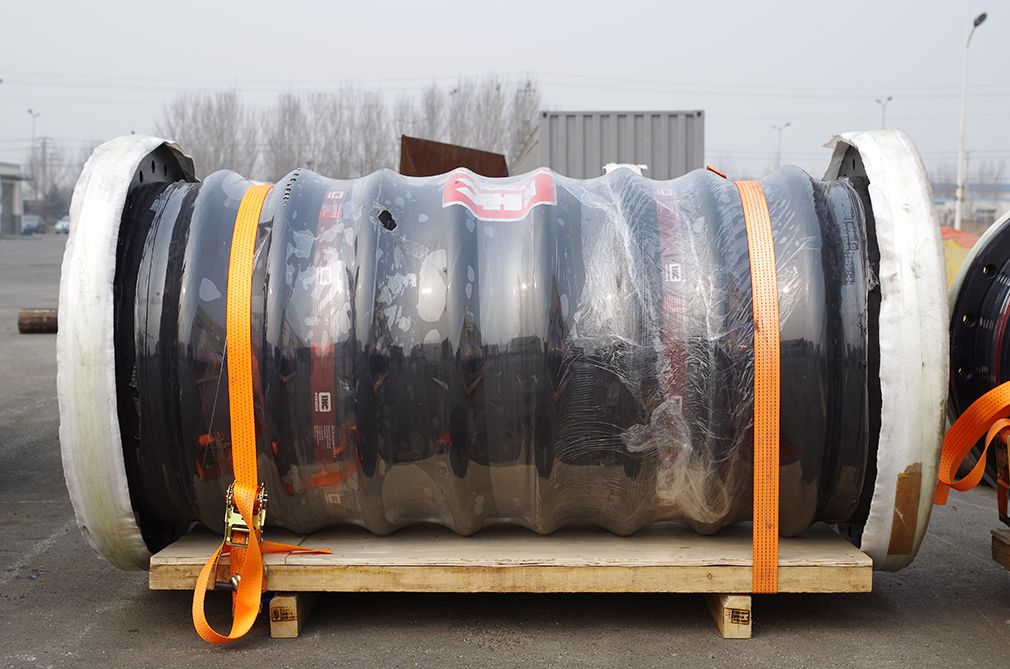

Suction Dredging Rubber Hose

Jan 3, 2023

Suction Dredging Rubber Hose consist out of an inner lining adjusted to the specific requirement of transported media. Wear indicator layers can be implemented in the hoses which transport abrasive media. A textile reinforcement of high tensile strength will control the pressure resistance of the dredging hose as well as the tensile strength. Where as the outer cover is built up by a rubber compound highly resistant against weathering, UV lights and Ozone. On special request the outer cover can be built with oil resistant materials.

Suction Dredging Rubber Hose Materials:
Tube: Smooth NR/ synthetic rubber, generally color is black
Reinforcement: one or multilayer spiral fabric reinforcements, steel wire spiral layer,
Cover: Oil, abration and weather-resistant wrapped synthetic rubber.

Suction Dredging Rubber Hose Structure:

  1. The inner rubber liner is composed of wear-proof natural rubber and synthetic rubber
  2. The reinforcement layer is composed of high strength rubber dipped chemical fiber and reinforced by spiral metal wire.
  3. The rubber cover is composed of natural rubber and synthetic rubber.
  4. The surface of the hose takes the shape of corrugated

Suction Dredging Rubber Hose Performance:

  1. Suction Dredging Rubber Hose are used with dredgers for silt/gravels conveyance.
  2. Pipe wall thickness range: from 20mm up to 50mm.
  3. The suitable working temperature: from -20°C to +50°C.
  4. Abrasion-resistant and bending –resistant.
  5. It is convenient to install, flexible to use and safe.

Suction Dredging Rubber Hose Applications:

  1. Used for mud piping of dredge.
  2. Widely used for sucking or discharging of mud,water, oil, air, and Powered in Industry, agriculture, factory, mining and building etc.

Suction Dredging Rubber Hose Advantages:

  1. This kind of Suction Dredging Rubber Hose have almost no tolerance, and they are capable of resistance to sand and water, light, small flexible and wear well. The minimum explosive pressure is fourfold to work pressure.
  2. Abrasion resistant, weather resistant,and zone resiatant. It is strong and durable.
  3. They are logical designed, excellent qulity, and durable.
