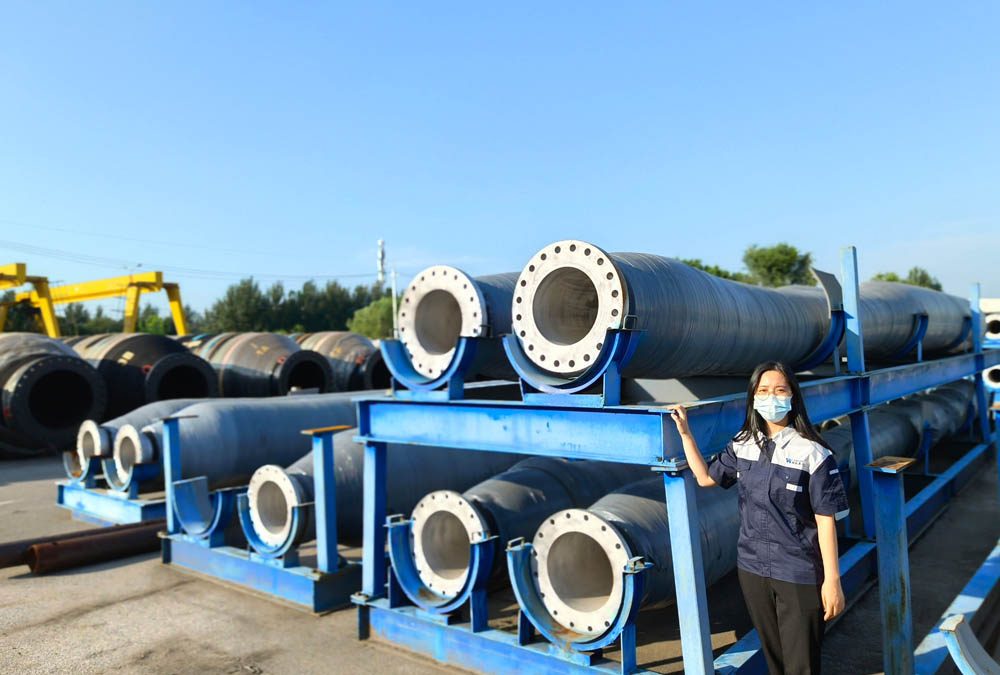

Single Carcass Submarine Hoses Technical Data
GENERAL DESCRIPTION
This type of hoses are designed for the transport of crude oil and petroleum product used for loading and unloading Vessel at offshoremoorings Systems
A Single Carcass Hose consists of the three main elements of lining, body and cover, which terminate over an end fitting.
This hoses are fully Conform to a protootype in reference and according to GMPHOM 2009 (Guide to Manufacturing and Purchasing Hoses for Offshore Moorings)
TECHNICAL DATA
Single Carcass Submarine Hoses Main Data
- Electrical Continuity: CONTINUOUS or DISCONTINUOUS as request
•W.P.: 15bar / 225psi or 19bar / 275psi or 21bar / 300psi - Pressure Rating: 15 bar/ 225psi – 19bar/275psi – 21bar / 300psi
- Factory Test Pressure: 15 bar/ 225psi – 19bar/275psi – 21bar/300psi
- Operating Pressure Range: -0,85/15 bar or 19 bar or 21 bar; -12/225psi or 275psi or 300psi.
- Main Carcass Minimum Burst Pressure: 77,5 bar / 1125 psi or 95 bar / 1425 psi or 105 bar / 1575 psi
- Maximum Flow Velocity: 21 m/s; 70 ft/sec
- Fluid Temperature range: -20°/82°C; -4°/185°F
- Ambient Temperature range: -29°C / +52°C
- Maximum Aromatic Content: Up to 60%
FITTING
- End Connections built in during manufacture.
- Flange Type: Standard flange ASME B16.5 Class 150lb or 300lb Welding Neck Flat Face (Other type available on request)
- Flange Material: Standard Flange Material ASTM A 105 N with a carbon of maximum 0,25% (Other materials available on request)
- Flange Coating: Hot Dip Galvanized According to EN ISO 1461 (610 gr./sqm.)
- Gasket Contact Surface: Finished According to EN 1759-1
- Nipple Material: ASTM A 106 grade A or B or API 5L grade A or B Killed or semikilled steel with a carbon content of maximum 0,23%
- Butt Weld: Xrayed in according to EN 1435 or ASME VIII par. UW-51B.
- Fillet Weld: MPI according to ASME VIII app.6
