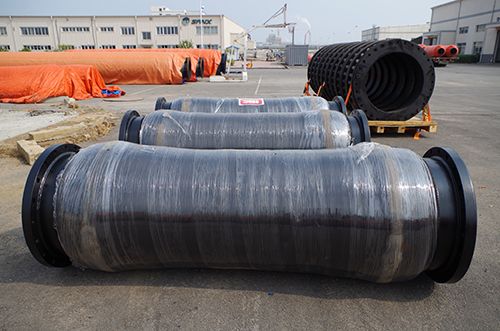

Rubber Mud Suction Dredging Hose

Jan 3, 2023

Rubber Mud Suction Dredging Hose Materials:

Tube: Smooth NR/ synthetic rubber, generally color is black
Reinforcement: one or multilayer spiral fabric reinforcements, steel wire spiral layer,
Cover: Oil, abration and weather-resistant wrapped synthetic rubber.

Rubber Mud Suction Dredging Hose Structure:

  1. The inner rubber liner is composed of wear-proof natural rubber and synthetic rubber
  2. The reinforcement layer is composed of high strength rubber dipped chemical fiber and reinforced by spiral metal wire.
  3. The rubber cover is composed of natural rubber and synthetic rubber.
  4. The surface of the hose takes the shape of corrugated

Rubber Mud Suction Dredging Hose Performance:

  1. Rubber hose pipes are used with dredgers for silt/gravels conveyance.
  2. Pipe wall thickness range: from 20mm up to 50mm.
  3. The suitable working temperature: from -20°C to +50°C.
  4. Abrasion-resistant and bending –resistant.
  5. It is convenient to install, flexible to use and safe.

Rubber Mud Suction Dredging Hose Applications:

  1. Used for mud piping of dredge.
  2. Widely used for sucking or discharging of mud,water, oil, air, and Powered in Industry, agriculture, factory, mining and building etc.
