Tail Submarine Double Carcass Hose

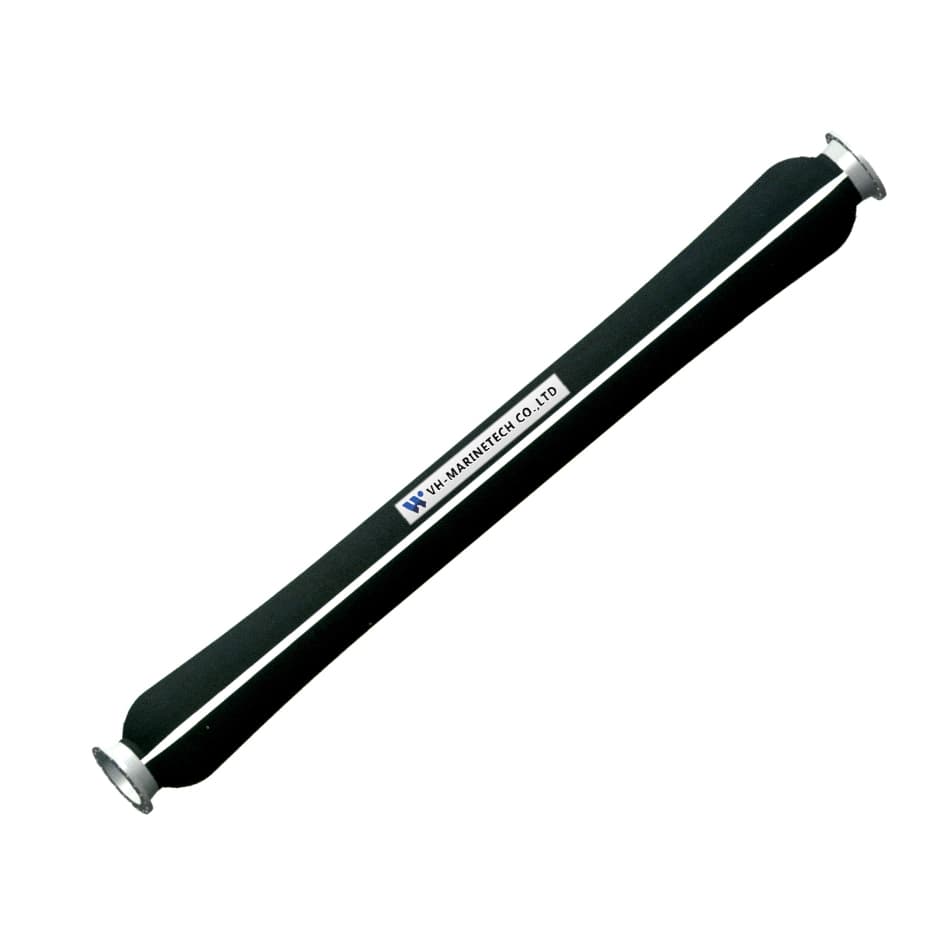

Tail Submarine Hose

Tail Submarine Hose Construction & Material

Tail Submarine Hose Main Carcass:
● Main Lining / Inner Tube : Smooth, oil and fuel resistant Pure Seamless and Extruded Acrylontrile-Butadiene-Rubber (NBR);

● Safety Lining: special construction to prevent defects or damage cause by incidental tearing or superficial damages of the main linig;

● Reinforcements: Multiple Plies of High Tensile Textile cord. One embedded helical Body Steel wire.

● Single Carcass And Double Carcass

Tail Submarine Hose Outer Cover:
● Smooth black, Synthetic Rubber Resistant to Abrasion, Oil, Sea Water and Sunlight.
● Polyurethane Orange in Colour cover available on request.

Product Details

Tail Submarine Hose Construction & Material
Tail Submarine Hose Main Carcass:
● Main Lining / Inner Tube : Smooth, oil and fuel resistant Pure Seamless and Extruded Acrylontrile-Butadiene-Rubber (NBR);
● Safety Lining: special construction to prevent defects or damage cause by incidental tearing or superficial damages of the main linig;
● Reinforcements: Multiple Plies of High Tensile Textile cord. One embedded helical Body Steel wire.
● Single Carcass And Double Carcass

Tail Submarine Hose Outer Cover:
● Smooth black, Synthetic Rubber Resistant to Abrasion, Oil, Sea Water and Sunlight.
● Polyurethane Orange in Colour cover available on request.

Fittings: End connections built in during manufacture. ASME B 16.5 Class 150lb or 300lb Weld Neck Flat Face or Raised Face on request.
Hose Tests: All tests according to GEPHOM 2009 and Customer detail.

Gel Chromatography

Gel Chromatography

Tensiometer display

Tensiometer Display

Wire Torsion Tester

Wire Torsion Tester

Tail Submarine Hose Specification

Inspection

2.9-floating-marine-fuel-hose

1. Material Tests

In addition to the quality control tests that the Manufacturer will have in place for compounds and materials listed in the following table, the following Material Tests should be conducted every three months.

Adhesion Tests 1.18

2. Adhesion Tests

The adhesion strength between all composite plies of the hose Body will be determined by peel testing in accordance with ISO 36 using strip test pieces.
The measured adhesion strength will be not less than 6 N/mm.

3. Buoyancy Recovery Test

3. Buoyancy Recovery Test

Adhesion tests will also be conducted on the integral buoyancy medium at three monthly intervals.
The sample will have a minimum internal diameter of 300 mm and will be at least 500 mm long.

4. Weight Test

4. Weight Test

5. Collar Test

5. Collar Test

6. Torsion Test

6. Torsion Test

7. Tensile Test On Pressurized Hose

7. Tensile Test On Pressurized Hose

8.Dynamic Test Bending Load

8.Dynamic Test Bending Load

910Minimum Bend Radius Test Bending Stiffness Test

9./10. Minimum Bend Radius Test/Bending Stiffness Test

11. Hydrostatic Pressure Test

11. Hydrostatic Pressure Test

12. Kerosene Test

12. Kerosene Test

13. Vacuum Test

13. Vacuum Test

14. Electrical Test

14. Electrical Test

15. Burst TestDouble Carcass Burst Test

15. Burst TestDouble Carcass Burst Test

16. Lifting Lug Acceptance Test

16. Lifting Lug Acceptance Test
