Marine Oil Floating Hoses Manufacturer
2. rated working pressure: 21 bar
3. minimum reserve buoyance: 20% or according to customer requirements
4. electrical continuity: electrical continuous or discontinuous
5.cover: PU or rubber
One End Reinforced Half Floating Single Carcass Hose 1st Off Buoy
Armoured Suction Hose is used in highly abrasive materials and the execution of jobs on sites with sharp edged and coarse solids.
Application:
Armoured Suction Hose is used in highly abrasive materials and the execution of jobs on sites with sharp edged and coarse solids.
By application of casting- and sintering technology it is now possible to manufacture wear rings with an optimized cross section and a very high hardness.

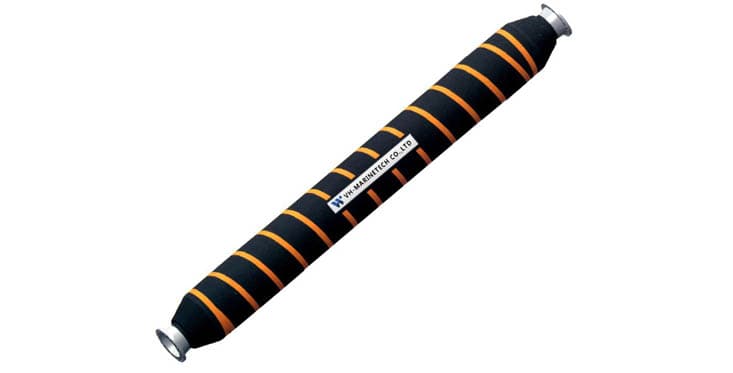

Reducer Full Floating Hose Floatation:
● Floating Material : Closed cell Foam.
Reducer Full Floating Hose Outer Cover:
● Smooth black, Synthetic Rubber Resistant to Abrasion, Oil, Sea Water and Sunlight.
● Helical Orange strip.
● Polyurethane Orange in Colour cover available on request.
● Smooth black, Synthetic Rubber Resistant to Abrasion, Oil, Sea Water and Sunlight.
● Helical Orange strip.
● Polyurethane Orange in Colour cover available on request.
Tail Full Floating Hose Fittings: End connections built in during manufacture. ASME B 16.5 Class 150lb or 300lb Weld Neck Flat Face or Raised Face on request.
Tail Full Floating Hose Tests: All tests according to GMPHOM 2009 and Customer detail.

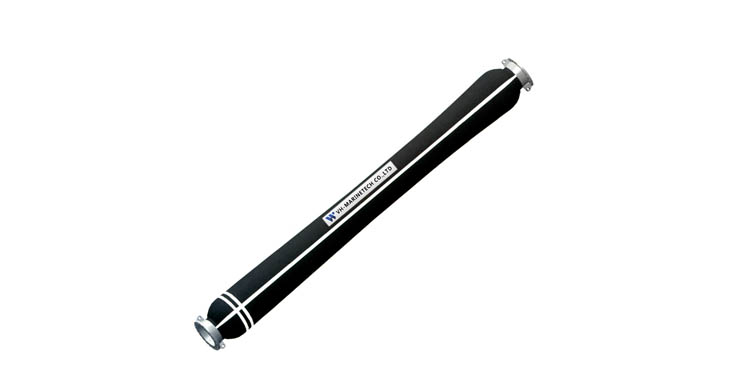

Tanker Rail Barbell Buoyant Hose
1. connecting aft manifold and tail hose
2. lifting lugs should be able to sustain loads, minimum breaking load is 12”=100KN 16”=150KN 20”=200KN
3. rated working pressure: 21 bar
4. minimum reserve buoyance: 20% or according to customer requirements
5. electrical continuity: electrical continuous or discontinuous.
Fully Reinforced Buoyancy Control or Neutral Buoyancy Hose
●Main Lining / Inner Tube: Smooth, oil and fuel resistant Pure Seamless and Extruded Acrylontrile-Butadiene-Rubber (NBR);
●Safety Lining: special construction to prevent defects or damage cause by incidental tearing or superficial damages of the main linig;
● Reinforcements: Multiple Plies of High Tensile Textile cord. One embedded helical Body Steel wire.
● Main Lining / Inner Tube : Smooth, oil and fuel resistant Pure Seamless and Extruded Acrylontrile-ButadieneRubber (NBR);
● Safety Lining: special construction to prevent defects or damage cause by incidental tearing or superficial damages of the main linig;
● Reinforcements: Multiple Plies of High Tensile Textile cord. One embedded helical Body Steel wire.
Mainline Submarine Hose
Mainline Submarine Hose Construction & Material:
1. connecting tanker and discharge facilities
2. rated working pressure: 21 bar
3. minimum reserve buoyance: 20% or according to customer requirements
4. electrical continuity: electrical continuous or discontinuous
5. leak detection system: after the failure of the primary carcass, the detector will react to the leakage to remind the operator to remove the damaged hose to avoid economic loss and environmental pollution.

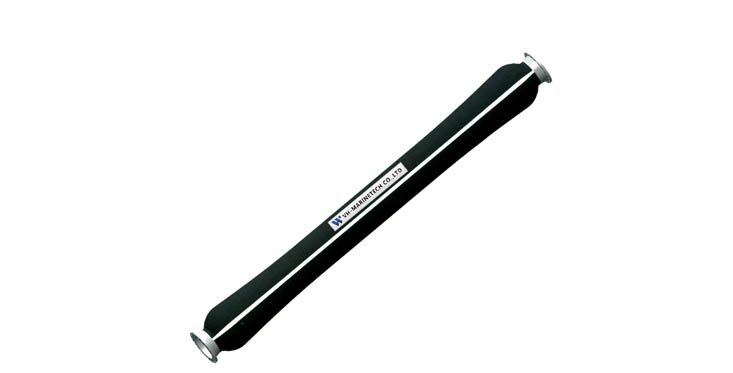

Tail Submarine Hose Main Carcass:
● Main Lining / Inner Tube : Smooth, oil and fuel resistant Pure Seamless and Extruded Acrylontrile-Butadiene-Rubber (NBR);
● Safety Lining: special construction to prevent defects or damage cause by incidental tearing or superficial damages of the main linig;
● Reinforcements: Multiple Plies of High Tensile Textile cord. One embedded helical Body Steel wire.
● Main Lining / Inner Tube Smooth, oil and fuel resistant Pure Seamless and Extruded Acrylontrile-Butadiene-Rubber (NBR);
● Safety Lining: special construction to prevent defects or damage cause by incidental tearing or superficial damages of the main linig;
● Reinforcements: Multiple Plies of High Tensile Textile cord. One embedded helical Body Steel wire.
One End Reinforced Submarine Hose With Location Collars
One End Reinforced Submarine Hose With Location Collars Main Carcass
● Main Lining / Inner Tube : Smooth, oil and fuel resistant Pure Seamless and Extruded Acrylontrile-Butadiene-Rubber (NBR);
● Safety Lining: special construction to prevent defects or damage cause by incidental tearing or superficial damages of the main linig;
● Reinforcements: Multiple Plies of High Tensile Textile cord. One embedded helical Body Steel wire.
● Single Carcass And Double Carcass
One End Reinforced Submarine Hose With Location Collars Outer Cover:
2. rated working pressure: 21 bar
3. minimum reserve buoyance: 20% or according to customer requirements
4. electrical continuity: electrical continuous or discontinuous
5. leak detection system: after the failure of the primary carcass, the detector will react to the leakage to remind the operator to remove the damaged hose to avoid economic loss and environmental pollution.
Tail Submarin Hose With Location Collars
● Main Lining / Inner Tube : Smooth, oil and fuel resistant Pure Seamless and Extruded Acrylontrile-Butadiene-Rubber (NBR);
● Safety Lining: special construction to prevent defects or damage cause by incidental tearing or superficial damages of the main linig;
● Reinforcements: Multiple Plies of High Tensile Textile cord. One embedded helical Body Steel wire.
Tail Submarin Hose With Location Collars Outer Cover:
● Smooth black, Synthetic Rubber Resistant to Abrasion, Oil, Sea Water and Sunlight.
VH MarineTech Co., Ltd., founded in 2016, focuses on designing, researching and manufacturing marine engineering products including dredging products, marine oil hoses, LPG hoses and deep sea mining hoses.
VH MarineTech Co., Ltd. covers an area of 11497 sqm with 180 employees. Equipped with the advanced manufacturing lines, the annual capacity are 600pcs marine oil hoses and 1800pcs dredging hoses.
VH-MARINETECH CO.,LTD is marine hoses manufacturers, The marine hoses were sold to South Korea, Japan, Malaysia Singapore, Australia, Egypt, Netherlands, Belgium and USA.
