Marine Floating Dredge Hose

Jan 3, 2023

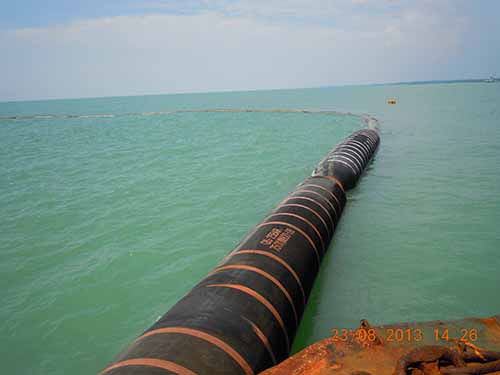

Flexible marine floating dredge hose and dredge pipe are mainly used for waterway dredging. Suck and discharge the silt, slurry, sand and stone which depoisited in the waterway. Flexible floating rubber dredging suction hose can extend distance of dredging.

Our hoses have good performance in resistance of corrosion, high pressure, bending and abrasion.Flexible floating dredge suction hose pipe and dredge pipe could connected with pipeline well, reduce the sea wave, make conveying medium flows more smoothly.

Compared with conventional steel mud-rejection, the high-rebound self-floating mud-removing rubber hose combines the performance of the traditional steel mud-draining pipe and the plastic floating body, and is resistant to wind, waves, corrosion and good self-floating performance.

It bears many advantages such as high working pressure, long service life, easy assembly, etc. It is especially suitable for construction in working waters with large wind waves. It is an alternative to the traditional mud discharge pipeline.

Marine Floating Dredge Hose Structure:
Tube:Natural rubber
Reinforcement: High tensile synthetic thread with helical body wire
Cover: Environment resistant synthetic rubber
Appearance: Wrapped
Color: Black
Temperature Range: From -20 ℃ To 80 ℃

Marine Floating Dredge Hose Features:

  1. Outer cover with excellent abrasion resistance and UV protection.
  2. Inner layer with excellent abrasion resistance and high quality.
  3. Single foam flotation casing to prevent water absorption.
  4. Wearing colored indicator layer.
  5. Area above water not less than 20% of total volume.
  6. Bending angle: in working condition ,the bending angle is from 0°to 45°.
  7. Low center of gravity, strong anti-wave ability, good stability.
  8. Easy installation, good adhesion, long service life.
  9. The product can be customized according to clients’ requirements.

Marine Floating Dredge Hose Application:

  1. For use in delivery lines subject to heavy swell or large tidal variations. This specially designed hose/float combination ensures that the line maintains its required curve profile without buckling.
  2. For use throughout a delivery line or linked to floating steel pipe. E + S floating hose provides a flexible link between a submerged line and floating pipe and between floating pipe and shore line.
  3. For all hydraulic transport of oil, water, etc.
