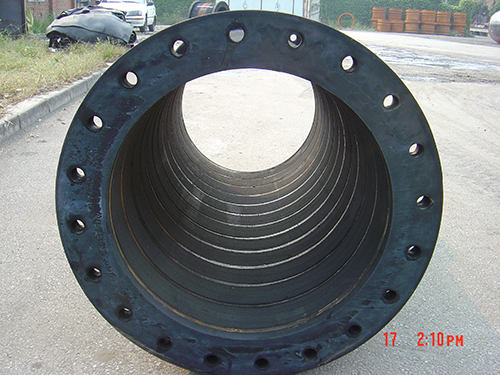

Armored Discharge Hose

Features:
Inner diameters up to 1300mm, various lengths and pressure ranges.

Pipe wall thickness range: from 15mm up to 100mm.

Abrasion-resistant and bending –resistant.

It is convenient to install, flexible to use and safe.

Working angle: 0° to 45 °

working temperature: -20°C to 50 °C

Product Details

Applications:

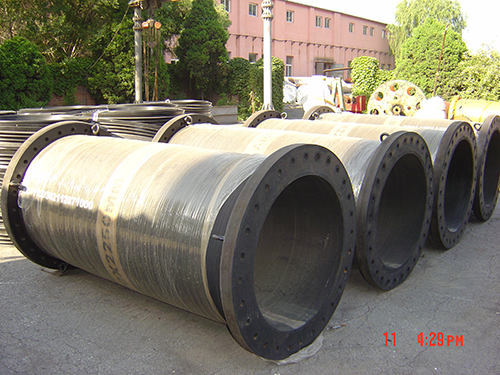

Armoured discharge hoses are used on dredging line, suitable for transporting sharp, large and heavy stuff such as coral reef, grit and weathered rock.
With build-in wear resistance metal, inner layer have good performance of wear and flexing resistance.
Specifications can be designed by customer requirements.

Features:
Inner diameters up to 1300mm, various lengths and pressure ranges.

Pipe wall thickness range: from 15mm up to 100mm.
Abrasion-resistant and bending –resistant.

It is convenient to install, flexible to use and safe.
Working angle: 0° to 45 °
working temperature: -20°C to 50 °C

Specifications:
Hose Diameter: 200mm-1100mm,Flange diameter: 340mm-1550mm,PCD: 295mm-1410mm,Flange thickness: 25mm-65mm,Inner wall thickness: 12mm-45mm(can be customized),Hole on flange: 8-36,Hole diameter: 22-36mm.
